Variable DC Power Supply 2 KW
Customer requirement is shown below:
- Motorized Variable Transformer Controlled Power Supply, P/N 6-4C-208163V
- Input power: 208 VAC, 6 Amps, 3 PH, 60 Hz
- Output: 0 to 120 VDC, 16 Amps max.
- Ripple: 5%
- Manual control with a variable transformer
- Circuit breaker / ON – OFF on the 208 VAC, 3 PH input line
- Protection fuse provided on the output
- POWER ON light
- Indoor enclosure: 24″H x 20″W x 9″D
- Voltmeter and ammeter are installed to monitor the output.
- All input/output connections are available inside the enclosure
- The system includes the main unit and remote assembly.

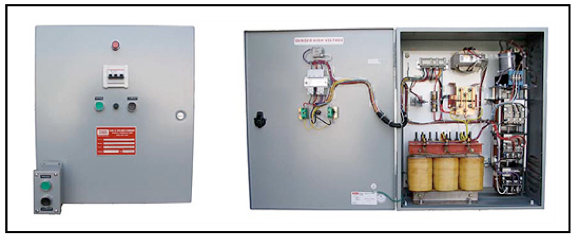

The photo of the transformer rectifier assembly is shown below:

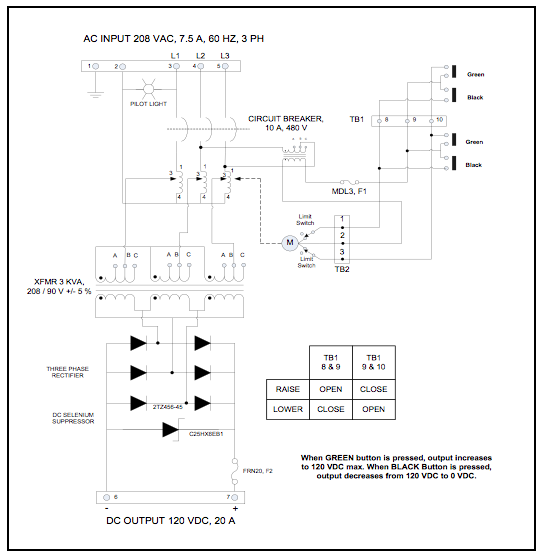

The schematic diagram of the transformer rectifier assembly is shown below:
To discuss your specific rectifier stack requirements, please contact us at 714 624-4740, or send us an email at quote@cehco.com.
