SCR CONTROLLED POWER SUPPLY WITH PLC INTERFACE

100 KW, P/N 5811C3

Specifications

• SCR Controlled Power Supply with PLC Interface, 100 KW, P/N 5811C3
• Input: 400 VAC, 145 Amps, 3 PH, 50 Hz
• Output: 0 to 50 VDC, 2000 Amps max
• Contactor and overload relay are installed for protection
• Start / Stop capability
• HMI interface
• EPO capability
• Manual voltage control and current limit
• PLC interface
• Output voltage and current are displayed on the voltmeter and ammeter.
• A selector switch is used to select between manual Control or PLC Control
• Stainless Steel power enclosure, 50″H x 65″W x 36″D
• NEMA 4X stainless steel control enclosure: 24″H x 20″W x 15″D
• All input/output connections are inside the enclosure

The system block diagram is shown below:

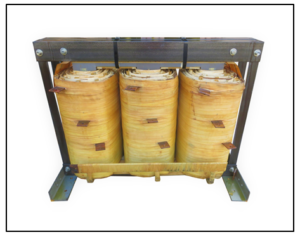

A photo of the transformer is shown below:

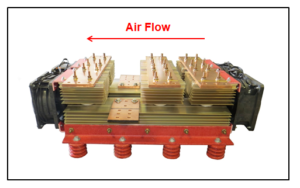

A photo of the six diode bridge rectifier is shown below:

A photo of the SCR controller is shown below:

A photo of a similar unit is shown for reference only:
