REPAIR OF SIX DIODE BRIDGE ASSEMBLY, P/N 6092C

Specifications:

• Six Diode Bridge Assembly, P/N 6092C
• AC Input Terminals: 1, 4, 5
• DC Output Terminals: 3 (Positive), 2 (Negative)

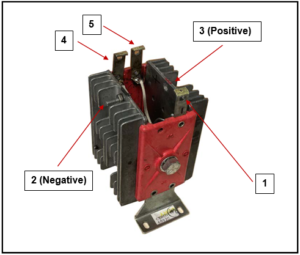

The photo of the Six Diode Assembly is shown below:

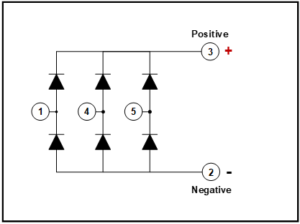

The schematic diagram of the Six Diode Bridge Assembly is shown below:
