24 VDC LIGHTING POWER SUPPLY FOR MRI ROOMS, P/N MRI208843

CEHCO MRI Lighting units have been used in the industry since 1985. These units are built to order.

Specifications:

• 24 VDC MRI unit, P/N MRI208843
• Input: 208 VAC ± 5 %, 3 PH, 60 Hz
• Output: 24 VDC fixed, 84 Amps
• Power: 2.0 KW
• Ripple: 5 %
• Enclosure: NEMA 1(24″ H x 20″ W x 11″ D)
• Weight: 150 lbs

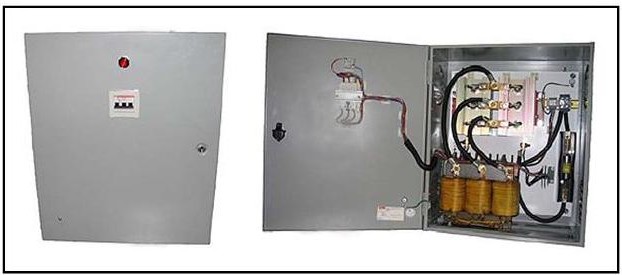

The photo of the unit is shown below:

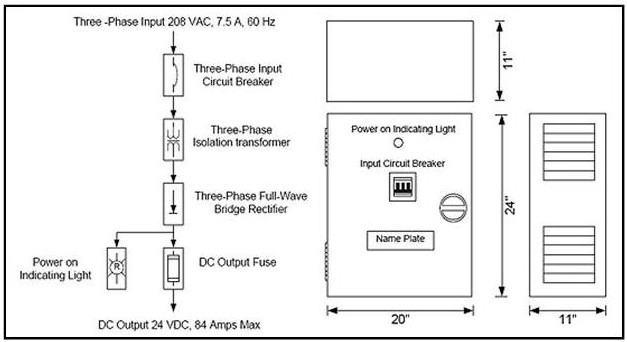

The details of the unit are shown below:

To discuss your specific needs, please contact us at (714) 624-4740, or send us an email at quote@cehco.com
