IGBT POWER SUPPLY, 0 TO 32 VDC, 3000 AMPS, P/N 6137C1

Send us an email for a Free Quote.

quote@cehco.com

Our engineers will respond within the hour



Description:

 PowerRack LT2 switch mode (IGBT) rectifier, air cooled:

  • < 3% ripple through full output range for consistent process results
  • Highest quality components
  • System expertly engineered for long service life
  • High efficiency and power factor through full output range
  • Smaller and lighter than SCR rectifiers
  • 100% duty cycle (rated for 100% output 24/7)
  • Up to six modules operating in parallel to achieve specified current outputs
  • Fewer, large capacity modules (up to 25kW each) versus competitive systems for higher reliability
  • 25kW up to 150kW (up to 9000A total, depending on VDC) maximum output power
  • Automatic load sharing between the power modules and integrated EMC filters
  • If one module fails, rectifier continues operating at reduced output
  • Corrosion resistant, e-coat primer with powder coat top coat, steel cabinet
  • Each module also housed in individual powder coated enclosures for maximum corrosion protection
  • Easy maintenance access through the front door
  • 19” slide rack modules for quick replacement if needed
  • All power module connections in the front for easy access
  • Steel base and removable side panels
  • Input power and control cables enter from the top
  • DC output through copper bus bars in the back
  • Galvanic isolation between AC input and DC output
  • All copper internal power contactors and transformer for high efficiency
  • Analog interface (0-10Vdc) for remote control

Air cooling system:

  • Cooling air flow: inlets on the sides, into the front of each module, and exhaust out the rear of the enclosure
  • Minimal cooling air required: quiet, variable speed, thermostatically controlled fans
  • Air is directed only to heat sinks cooling the power components
  • All sensitive electronics isolated from the cooling air
  • Conformal coated circuit boards for additional corrosion protection
  • Thoughtful design ensures exceptional service life

Main Components:

  • Front door circuit breaker with lock out handle
  • Input contactor
  • EMC filter to minimize noise to the power grid
  • Fully electronic current and voltage control adjustable from 1% to 100% with wear-free
  • power semiconductors

Protection Devices:

  • Ultra-fast electronic DC over-current limitation
  • DC short-circuit current limitation
  • Over-temperature protection (with indication through potential-free contact)

Controls Interface:

  • Set-point adjustment for Volts & Amps: 0-10 Vdc
  • Actual feedback values for Volts & Amps: 0-10 Vdc
  • Rectifier On/Off (customer terminal Input)
  • Rectifier running (customer terminal Input)
  • Rectifier fault (customer terminal Input)

Technical Data:

Input voltage:                                    480 V (±10%), 3 Ph, 50-60 Hz + GND

Input current:                                    143 A

Power factor:                                     > 0.94

DC output voltage:                        32 V

DC output current:                        3000 A

Duty factor:                                        100%

Ripple:                                               < 3% across full range of control

Adjustment:                                       1 – 100%

Control:                                              constant current and voltage control

Control accuracy:                             < 1% of rated output

 Cooling:                                            Air-Cooled

Ambient temperature:                     up to 95° F (35° C)

Site altitude:                                      up to 3280 feet above sea level

 Dimensions:                                     24 W x 32 D x 79 H inches

                                                            (+ 4 inch base)

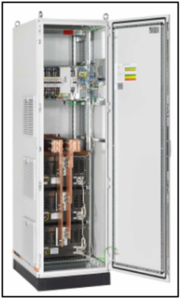

The photo of the unit is shown below:





Remote Control (RC-1):

The RC-1 digital remote control panel is shock and corrosion resistant. The panel mount  components are protected by a transparent hinged plastic cover. The enclosure is also hinged  for easy wall mount installation.

Main Components:

  • Digital DC voltmeter
  • Digital DC ammeter
  • Potentiometer to set nominal DC voltage: 0 to 100%
  • Potentiometer to set nominal DC current: 0 to 100%
  • Illuminated selector Switch “Rectifier On/Off”
  • Illuminated indicator “Rectifier Fault”
  • Input Voltage: 24 Vdc
  • Dimensions: 10 W x 5 D x 8.5 H inches

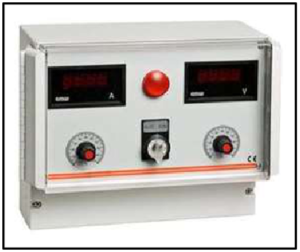

The photo of the Remote Control is shown below:
