ABOUT HIGH VOLTAGE DIODE ASSEMBLIES

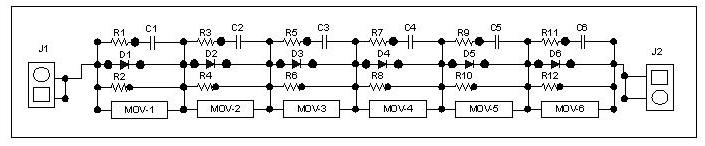

High voltage diode assemblies are built by adding diodes in series to yield a higher peak inverse voltage. For example, if each diode is rated for 1200 peak inverse voltage (PIV), then six diodes in series would have a total peak inverse voltage of 7200 PIV. The detailed circuit is shown below.

a74

For more information, click the links below:



a83

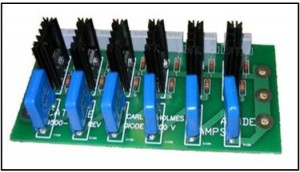

Six Diode Assembly, Blocking Voltage is 7200 PIV, P/N 4256C-1



a92

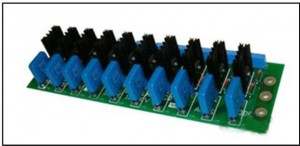

Ten Diode Assembly, Blocking Voltage is 12000 PIV, P/N 4256C-2







Nine Diode Assembly, Blocking Voltage is 16200 PIV, P/N 5872C4-1



These above high voltage diode assemblies were used to build a three-phase rectifier circuit for the high voltage SCR-controlled power supplies (P/N 18278PS, P/N 18498PS, and P/N 18574PS). The number of diodes in series determines the desired peak inverse voltage. We can build a diode assembly with a higher blocking voltage per customer requirements. We keep all materials (i.e. diodes, SCRs, heat sinks, etc.) in stock for immediate assembly. To discuss your specific rectifier stack requirements, please contact us at 714 624-4740, or send us an email at quote@cehco.com.
