Electrochlorination Power Supply, P/N 18164PS

CEHCO manufactures transformers, rectifiers, and electr-chlorination power supplies for On-Site Sodium Hypochlorite Generator System. We also make electrolyzer cells and design / integrate/manufacture a complete On-Site Sodium Hypochlorite Generator System per customer requirements.

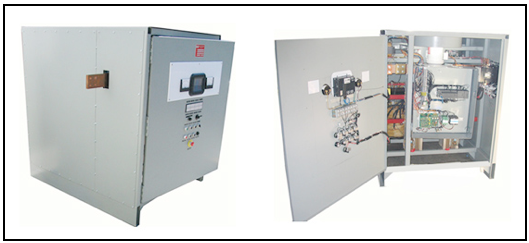

The photo of the electro-chlorination power supply for a customer in Malaysia is shown below:



electrochlorination-01



Specifications:

  • Electrochlorination Power Supply, P/N 18164PS
  • Input: 380 / 400 / 415 VAC, 3 PH, 50 Hz
  • Output: 0 to 100 VDC, 1820 Amps
  • PLC control with touch screen monitor
  • 4/20 mA input interface
  • Enclosure: 70″H x 65″W x 50″D

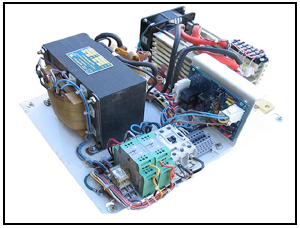

We have built an open-frame SCR-controlled electro-chlorination power supply for OEM customers. The photo of an open frame electro-chlorination power supply is shown below:



electrochlorination-02

Specifications:

  • Electrochlorination Power Supply, P/N 4085C
  • Input: 240 VAC, 1 PH, 60 Hz
  • Output: 10.5 VDC, 130 Amps
  • 4/20 mA PLC interface
  • Open frame

CEHCO services electro-chlorination rectifiers, power supplies, transformers, and electrolyzer cells in the On-Site Sodium Hypochlorite Generator market. We build our own transformers, rectifiers, and electrolyzer cells. To discuss your specific needs, please contact us at (714) 624-4740, or send us an email at quote@cehco.com
