BRIDGE RECTIFIER ASSEMBLIES
Bridge Rectifier Assemblies are constructed by packaging diodes and/or SCR components with heat sink extrusions in a bridge circuit. CEHCO uses M, T, N and W heat sink extrusions to build rectifier assemblies.
Basic Diagram of Four Diode Bridge Assembly
Ripple: 50%
Basic Diagram of Six Diode Bridge Assembly
Ripple: 5%
Four Diode and Six Diode Bridge Assemblies
Click and review part numbers listed below.
Four Diode Bridge Assembly

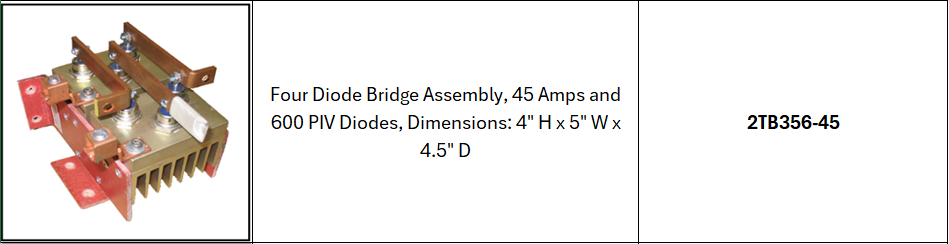

Using 45 Amps Diodes P/N 2TB356-45

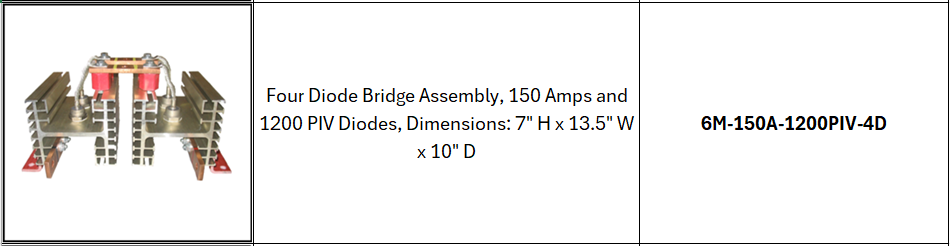

Four Diode Bridge Assembly
Using 150 Amps Diodes P/N 6M-150A-1200 PIV-4D
Four Diode Bridge Assembly

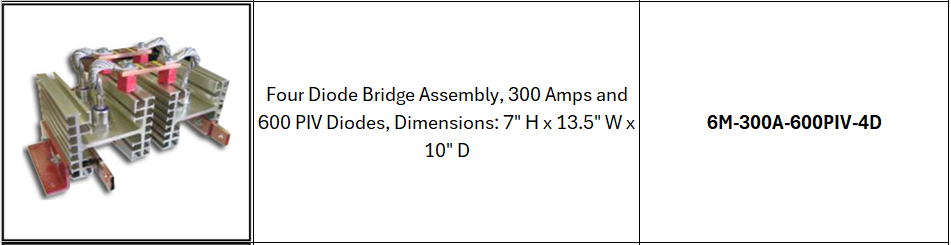

Using 300 Amps Diodes P/N 6M-300A-600PIV-4D

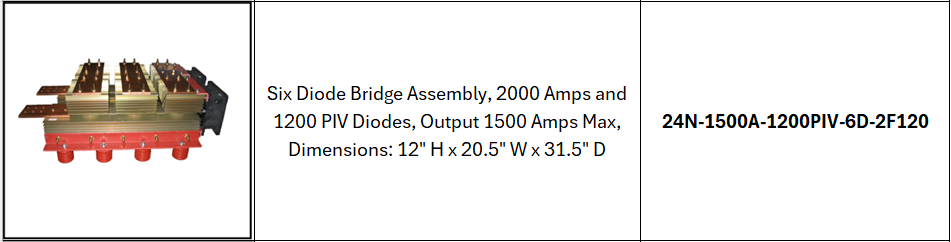

Six Diode Bridge Assembly, 1500 Amp Output
Using 2000 Amp Diodes and 2 fans
P/N 24N-1500A-1200PIV-6D-2F120
Six Diode Bridge Assembly
Using 2000 Amp Diodes and 6 fans

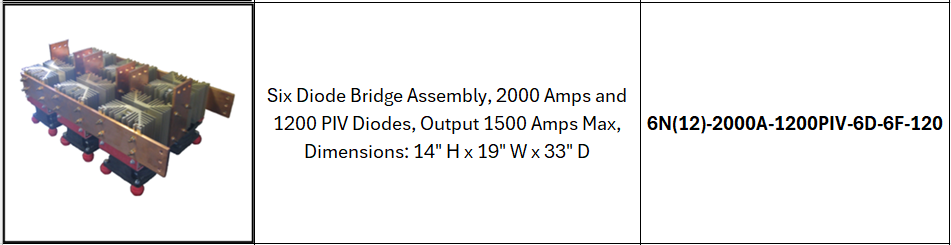

P/N 6N (12)-2000A-1200PIV-6D-6F120

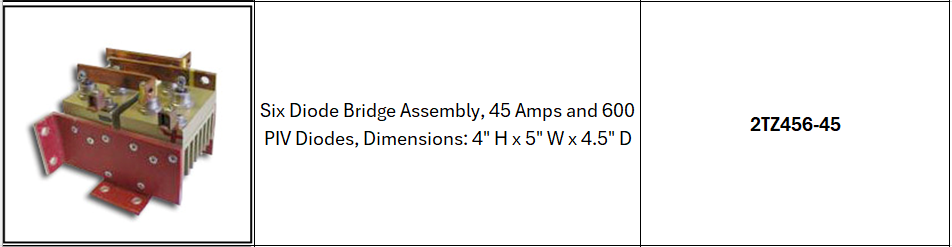

Six Diode Bridge Assembly
Using 45 Amp Diodes P/N 2TZ456-45

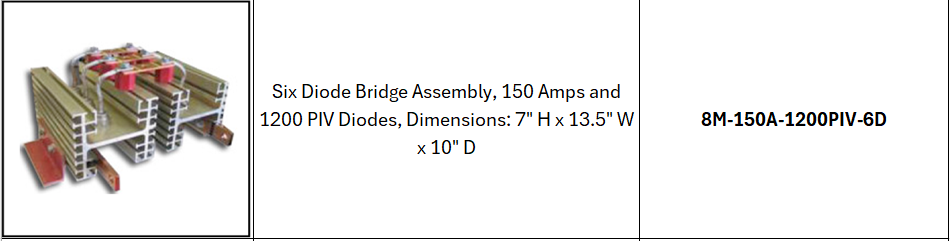

Six Diode Bridge Assembly
Using 150 Amp Diodes, P/N 8M-150A-1200PIV-6D
Six Diode Bridge Assembly

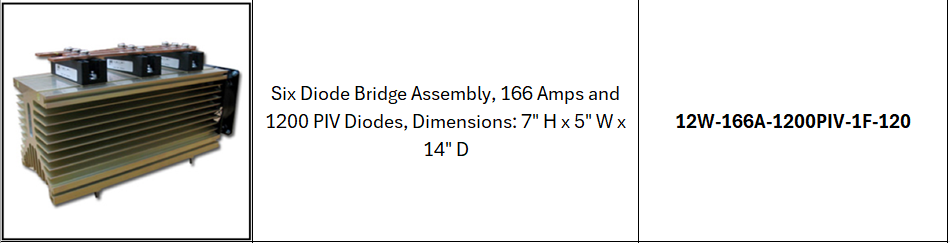

Using 166 Amp Diodes, P/N 12W-166A-1200PIV-1F-120
Six Diode Bridge Assembly
Using 300 Amp Diodes, P/N 8M-300A-600PIV-6D
Six Diode Bridge Assembly

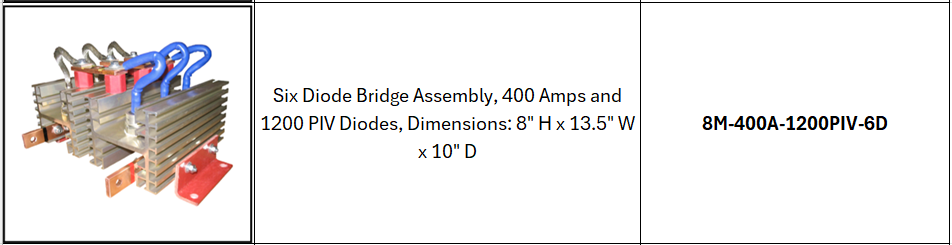

Using 400 Amp Diodes, P/N 8M-400A-1200PIV-6D
Six Diode Bridge Assembly

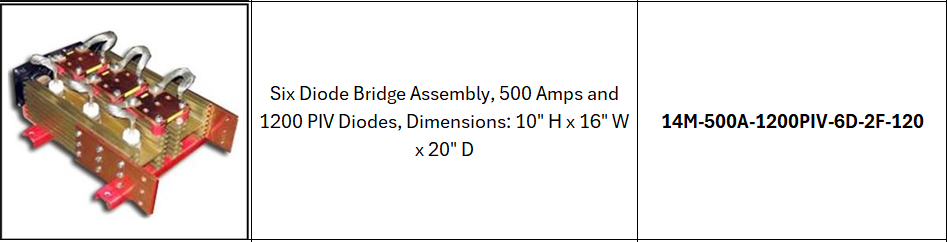

Using 500 Amp Diodes, P/N 14M-500A-1200PIV-6D-2F-120

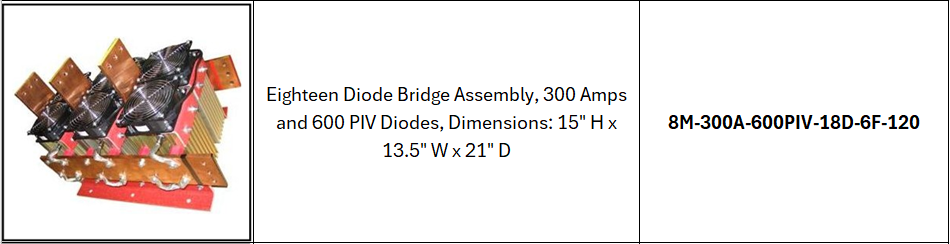

Eighteen Diode Bridge Assembly
Using 300 Amp Diodes and 6 fans
(Each diode represents 3 diodes in parallel)
P/N 8M-300A-600PIV-18D-6F-120

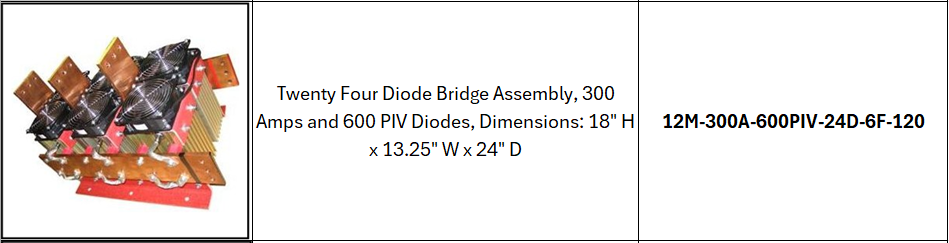

Twenty Four Diode Bridge Assembly
Using 300 Amp Diodes and 6 fans
(Each diode represents 4 diodes in parallel)
P/N 12M-300A-600PIV-24D-6F-120
Six Diode Bridge Assembly, 2000 Amp Output
Using 2000 Amp Diodes and 6 fans

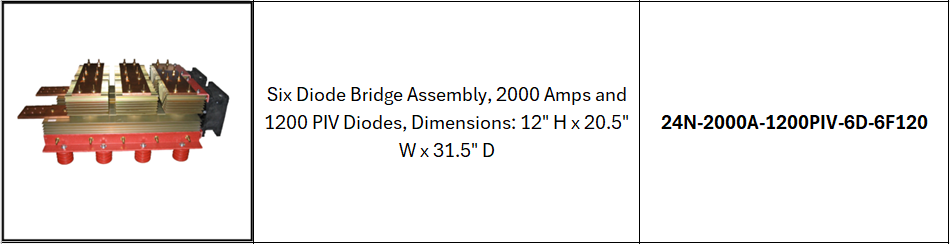

P/N 24N-2000A-1200PIV-6D-6F120

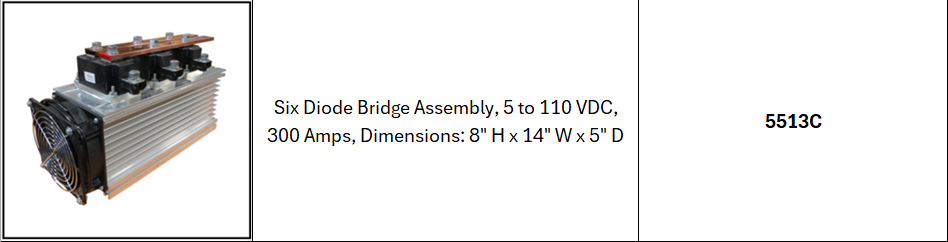

Six Diode Bridge Assembly, 5 to 110 VDC, 300 Amps, P/N 5513C

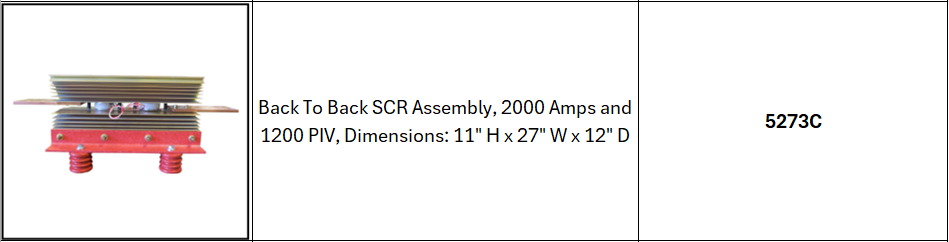

Back To Back SCR Assembly, P/N 5273C

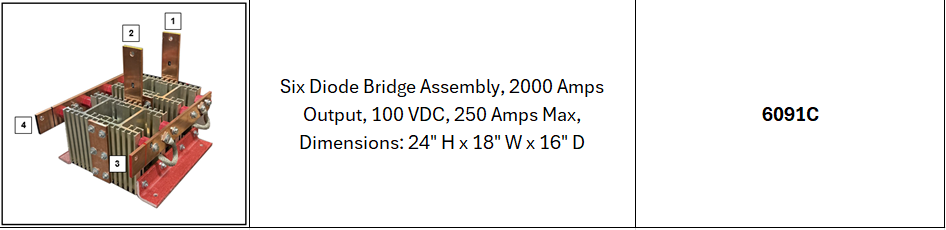

Six Diode Bridge Assembly, 2000 Amp Output
Output 100 VDC, 250 Amps Max
P/N 6091C
Six SCR Bridge Assembly
P/N 24N-1745A-1600PIV-6SCR-2F120
The above links will assist you to determine which rectifier is best suited to meet your specific application. All materials used to build rectifier assemblies are kept in stock. This allows us the capability of designing units to suit customer-specific requirements and meet a quick delivery schedule. Please contact us at 714 624-4740, or send us an email at quote@cehco.com.
