AC TO DC UNREGULATED POWER SUPPLY
- Read More About AC to DC Unregulated Power Supplies
- Block Diagram of AC to DC Unregulated Power Supply
AC to DC Unregulated Power Supplies:
-
Input power can be single phase (1 PH) or three phase (3 PH)
-
DC output voltage up to 1000 VDC max
-
DC output current up to 1500 Amps max
Block Diagram

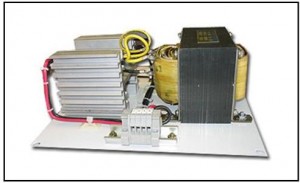

AC To DC Unregulated Power Supply, P/N 18326PS
Input 110 VAC, 1 PH, 60 Hz Output 120 VDC, 100 Amps
AC To DC Unregulated Power Supply, P/N 18213PS
Input 120 VAC, 1 PH, Output 120 VDC, 16.7 Amps
Transformer Rectifier Assembly, P/N 18333PS
Input 190/208/220/380/416/440 VAC, 1 PH, 50/60 Hz
Output 141 VDC, 80 Amps
AC To DC Unregulated Power Supply, P/N 18529PS
Input 240 VAC, 3 PH, 60 Hz Output 250 VDC, 300 Amps
AC to DC Unregulated Power Supply, P/N 19343
Input 480 VAC, 3PH, 60 Hz. Output 12 VDC, 500 Amps
AC To DC Unregulated Power Supply, P/N 19239PS
Input 460 VAC, 3 PH, 60 Hz Output 250 VDC, 1200 Amps
AC To DC Unregulated Power Supply, P/N 18326PS
Input 110 VAC, 1 PH, 60 Hz Output 120 VDC, 100 Amps
AC To DC Unregulated Power Supply, P/N 18213PS
Input 120 VAC, 1 PH, Output 120 VDC, 16.7 Amps
Transformer Rectifier Assembly, P/N 18333PS
Input 190/208/220/380/416/440 VAC, 1 PH, 50/60 Hz
Output 141 VDC, 80 Amps
AC To DC Unregulated Power Supply, P/N 18529PS
Input 240 VAC, 3 PH, 60 Hz Output 250 VDC, 300 Amps
AC to DC Unregulated Power Supply, P/N 19343
Input 480 VAC, 3PH, 60 Hz. Output 12 VDC, 500 Amps
AC To DC Unregulated Power Supply, P/N 19239PS
Input 460 VAC, 3 PH, 60 Hz Output 250 VDC, 1200 Amps
