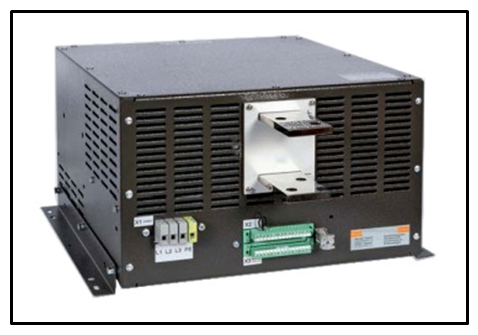

IGBT (Insulated Gate Bipolar Transistor) power supplies are widely used in various industrial applications, including welding, induction heating, motor drives, and power inverters. When it comes to air-cooled IGBT power supplies, these are designed to dissipate heat generated during operation without the need for liquid cooling systems. Here’s an overview of air-cooled IGBT power supplies and their key features:
Key Features of Air-Cooled IGBT Power Supplies:
-
IGBT Technology: IGBTs are semiconductor devices that combine the characteristics of both MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) and bipolar transistors. They are used in power electronics applications due to their high voltage and current handling capabilities.
-
Air Cooling: Unlike liquid-cooled IGBT systems, air-cooled IGBT power supplies use forced air cooling techniques to dissipate heat generated during operation. Typically, one or more fans are integrated into the power supply unit to circulate air and cool down the IGBT modules and other heat-generating components.
-
Compact Design: Air-cooled IGBT power supplies are often designed with a compact and lightweight form factor, making them suitable for applications where space constraints are a concern.
-
Efficiency: Air-cooled IGBT power supplies are generally efficient in converting electrical energy into the desired output, with minimal power loss due to the cooling method.
-
Cooling Control: Many air-cooled IGBT power supplies come equipped with fan speed control or variable cooling options to optimize cooling based on the system’s thermal requirements. This can help improve efficiency and reduce fan noise when the system is operating below its maximum capacity.
-
Output Voltage and Current: Air-cooled IGBT power supplies come in various output voltage and current ratings to match the specific requirements of different applications. These power supplies can deliver both low and high-frequency outputs depending on the application’s needs.
-
Protection Features: Most air-cooled IGBT power supplies include built-in protection features to safeguard against overcurrent, overvoltage, overtemperature, and other fault conditions. These protections help ensure the safe operation of the equipment and prevent damage to the IGBTs.
-
Control and Interface: These power supplies may have digital or analog control interfaces that allow for precise adjustment of output parameters, making them suitable for applications that require fine-tuning of power delivery.
-
Applications: Air-cooled IGBT power supplies are commonly used in applications such as welding machines, induction heating systems, variable frequency drives (VFDs) for motors, and high-frequency inverters for applications like plasma cutting and induction melting.
-
Maintenance: Maintenance of air-cooled IGBT power supplies generally involves periodically cleaning or replacing the fans, ensuring proper ventilation, and monitoring the power supply’s performance to detect any potential issues early.
When selecting an air-cooled IGBT power supply for a specific application, it’s essential to consider factors such as the required output voltage and current, cooling capacity, protection features, and control interfaces to ensure it meets the needs of the application while operating reliably and efficiently.
