An unregulated AC to DC power supply is a simple electronic circuit that converts alternating current (AC) voltage into direct current (DC) voltage without incorporating voltage regulation or stabilization. Unregulated power supplies are typically used in applications where a relatively stable output voltage is not critical or where other components downstream can tolerate some variation in voltage. Here’s how an unregulated AC to DC power supply works and its key characteristics:
Components of an Unregulated AC to DC Power Supply:
-

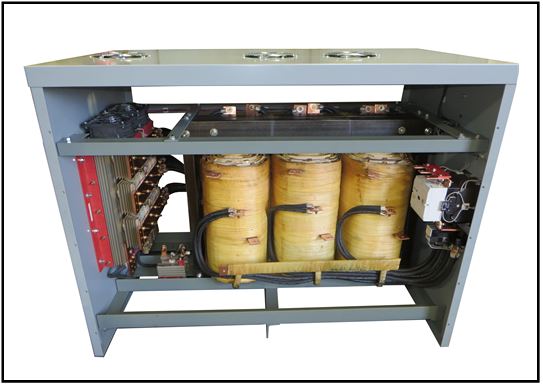

Transformer: The power supply starts with a transformer that converts the input AC voltage to a different AC voltage level. The transformer consists of primary and secondary windings, where the primary is connected to the AC mains, and the secondary provides the desired output voltage.
-
Rectifier: After the transformer, a rectifier circuit is used to convert the AC voltage into pulsating DC voltage. Common rectification methods include full-wave rectification using diodes or bridge rectifiers.
-
Filter Capacitor: A filter capacitor is connected across the output of the rectifier to smooth out the pulsating DC voltage, reducing the ripple. The larger the capacitance value, the better the filtering.
-
Load: The load represents the device or equipment that is powered by the DC output of the power supply. It could be a simple electronic circuit, a motor, or any other DC-powered device.
Key Characteristics of Unregulated Power Supplies:
-
Voltage Variability: The output voltage of an unregulated power supply is directly influenced by fluctuations in the input AC voltage. It can vary with changes in the input voltage, load conditions, and other factors. As a result, the output voltage is typically higher than the rated voltage when the load is light and lower when the load is heavy.
-
Ripple Voltage: Even after filtering, unregulated power supplies still have a certain amount of AC voltage ripple in their output. This ripple can affect sensitive electronic components and may require additional filtering or regulation in some applications.
-
Simplicity and Cost-Effectiveness: Unregulated power supplies are straightforward and cost-effective to build because they do not require complex voltage regulation circuits. They are suitable for applications where precise voltage control is not critical.
-
Limited Use Cases: Unregulated power supplies are best suited for applications where slight variations in voltage are acceptable, such as powering motors or providing raw DC voltage for simple electronic circuits. They are not suitable for sensitive electronic devices or applications that require a stable and precisely controlled voltage.
-
Efficiency: Unregulated power supplies tend to be less efficient than regulated counterparts because they operate at a fixed voltage ratio and may not optimize power delivery for varying loads.
When considering an unregulated AC to DC power supply for your application, make sure that the variations in voltage and ripple are within acceptable tolerances for your specific use case. If precise voltage control is essential, you may need to consider using a regulated power supply with voltage regulation and stabilization features.
