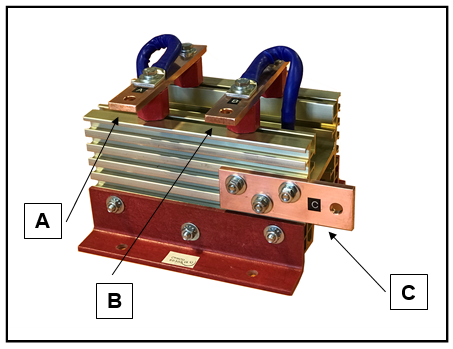

A “2-diode assembly” typically refers to a setup or configuration that involves two diodes connected together in some manner. Diodes are semiconductor devices that allow the flow of electric current in one direction while blocking it in the opposite direction. Such assemblies can be used in various electronic circuits for rectification, signal processing, voltage clamping, and other purposes. Here are some common configurations and applications of 2-diode assemblies:
-
Full-Wave Rectification (Center-Tapped Transformer): In a center-tapped transformer full-wave rectifier circuit, two diodes are typically used as a diode bridge. This assembly allows for the conversion of alternating current (AC) into direct current (DC) by conducting current in both the positive and negative half-cycles of the AC waveform. The diode bridge consists of two pairs of diodes arranged in opposite directions, ensuring that current flows in one direction across the load.
-
Half-Wave Rectification: In a half-wave rectifier circuit, a single diode is used to rectify only one half of the AC waveform. While this setup involves only one diode, you can think of it as a 2-diode assembly when you consider that you have two half-cycles of AC, and the diode is used for one of them.
-
Voltage Clamping (Zener Diodes): In some voltage clamping or voltage regulation circuits, two diodes are used. For instance, a Zener diode voltage regulator circuit might involve a series diode and a Zener diode connected in opposite directions. This arrangement clamps the output voltage to a specific level.
-
Signal Clipping and Clamping: In signal processing circuits, two diodes may be used for clipping and clamping purposes. Clipping diodes limit the amplitude of a signal, and clamping diodes shift the signal up or down by a certain voltage level.
-
Current Steering (OR Logic): In digital logic circuits, two diodes can be used for current steering, often referred to as OR logic. This configuration allows current to flow through one of two paths depending on the input signal. If either input is high, current can flow through the corresponding diode.
-
Protective Diodes (Flyback Diodes): In circuits involving inductors or relays, a diode assembly of two diodes (typically referred to as a flyback diode or freewheeling diode) can be used to protect against voltage spikes that occur when the inductor’s magnetic field collapses.
-
Differential Signaling: In communication and data transmission circuits, a differential signaling arrangement often uses two diodes to handle signals with opposite polarity. This configuration helps in noise rejection and signal integrity.
The specific application and function of a 2-diode assembly can vary widely depending on the circuit’s requirements. It’s essential to understand the context and purpose of the diode assembly to properly design and analyze its behavior within the circuit.
